SOLARLOK GROUNDING BOLT INSTALLATION ACCESSORIES
by TE Connectivity a division of Tyco Electronics
SOLARLOK grounding system enables every installer to ground the PV system in a professional way and creates flexibility at the installation. The system contains various bolt and clip solutions.

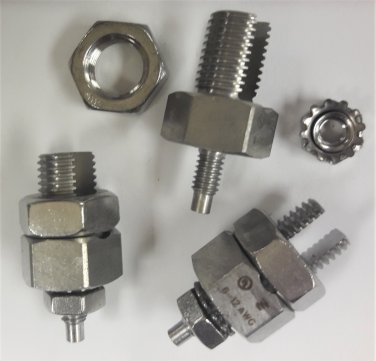

The grounding assembly consists of a wire bolt (wire slot on one end and threaded post on the other), 9/16" hex nut, and 11/32" hex washer nut.
Applications
- Solar panels
- Solar inverters
- Micro inverters
- DC optimizers
Benefits
- Rugged and compact hex bolt design made from stainless steel
- Quick and easy mounting procedures.
- Bottom edge feature cuts through the annodized aluminum surface when securing the hex bolt to the module frame Standard tooling can be used with the hex nuts
Contact Base Material: Stainless Steel
Wire Size (AWG): 6, 12
Thread Size: #8-32 UNC
MPN: 2058729-1
Alias: AMPS-0-2058729-1 CX4648-000
UPC: 000020587291
Items are new and unused. Manufacturer's warranty information is not available for this product. Returns are not accepted for this item.
